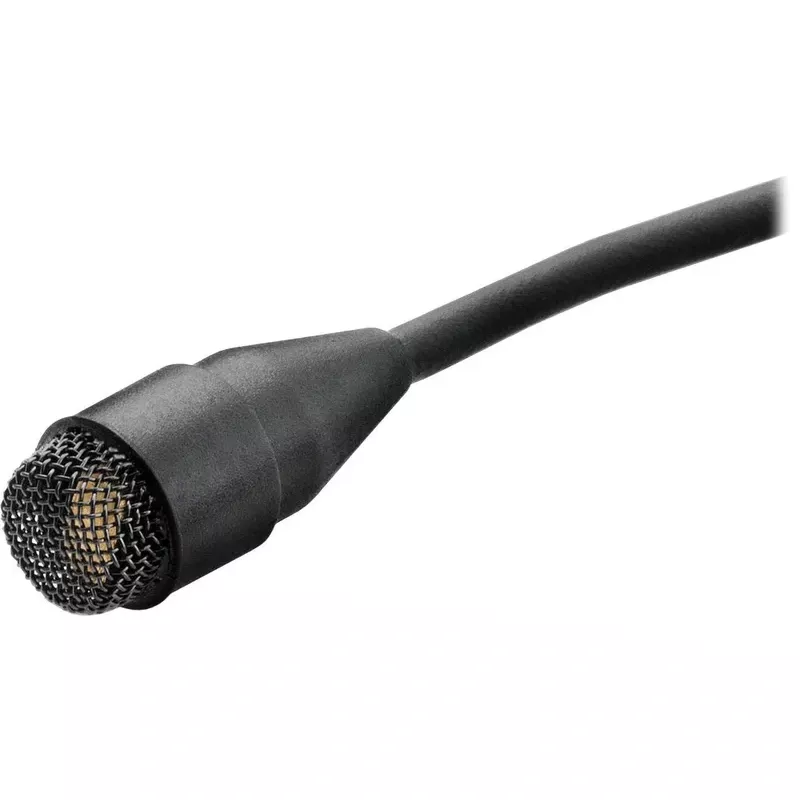

DPA 4062-OC-C-B00 Core Miniature Omni Microphone – Black

Description

d:screet Core 4062 miniature omnidirectional microphone, extreme SPL, black, MicroDot Connector, no adapter included

The 4062-OC-C-B00 is designed for use with wireless systems in performance and theatrical presentations. The Core 4062 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4062 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.

Features

Specifications

Directional pattern: OmnidirectionalPrinciple of operation: PressureCartridge type: Pre-polarized condenserFrequency range: 20 Hz – 20 kHzFrequency range, 2 dB: Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHzSensitivity, nominal, 3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/PaEquivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 Pa (max. 37 dB(A))Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)Total harmonic distortion (THD) – CORE <1% THD: 136 dB SPL RMS, 139 dB SPL peakDynamic range – CORE: Typ. 106 dBMax. SPL, peak before clipping: 154 dBOutput impedance: 30 – 40Cable drive capability: Up to 300 m (984 ft)Power supply (for full performance) For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power 4 V for full performanceCurrent consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR AdapterConnector: MicroDotColor: BlackWeight: 7.5 g (0.26 oz) incl. Cable and MicroDot connectorMicrophone diameter: 5.4 mm (0.21 in)Microphone length: 12.7 mm (0.5 in)Cable length: 1.8 m (5.9 ft)Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pinTemperature range: -40C to 45C (-40F to 113F)Relative humidity (RH): Up to 90%

In the Box:
