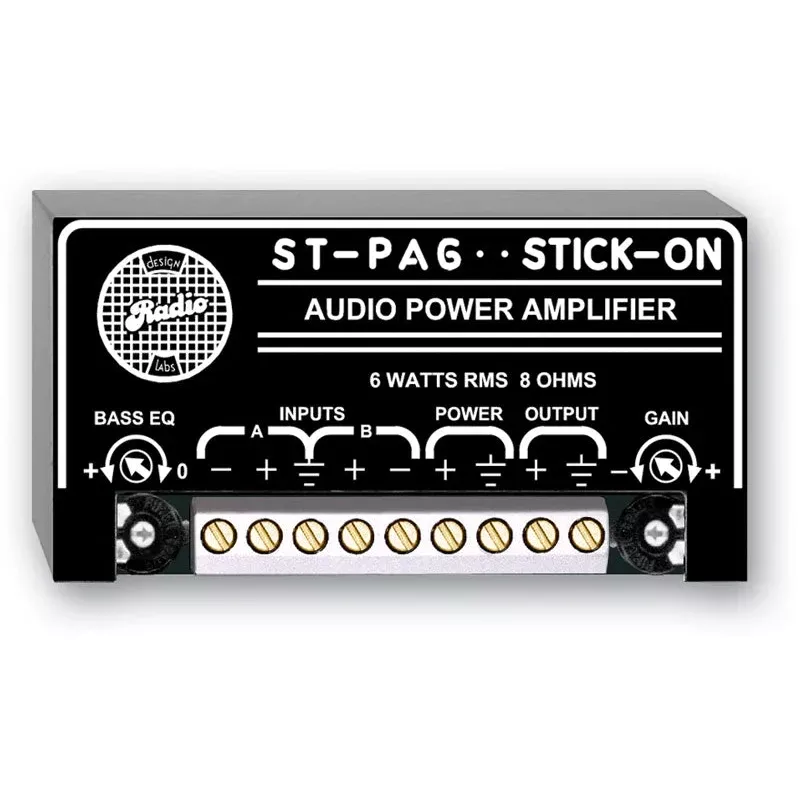

TheST-PA6 6W Mono Audio AmplifierfromRDLis a professional-quality audio amplifier equipped with two balanced inputs, gain and equalization controls, and a single output. It can be used to drive an 8-Ohm speaker. In addition, all connections are made via screw terminals.
Each input on the ST-PA6 is a balanced bridge, with two inputs actively mixed equally, that is suitable for monitoring a stereo line. The ST-PA6 6W Mono Audio Amplifier’s output protection automatically resets once the condition is removed, eliminating the need for fuse protection. Interlocking-adhesive mounting tabs are included. A 24 VDC (PS-24AS, USA) power supply (available separately) is required.
Ultra-compact design
Two inputs and one output
Sends 6W RMS to an 8-Ohm speaker
Each input is a balanced bridge, and both are actively mixed equallyideal for mono monitoring of stereo input
Simple screw-terminal connectors for all I/O and power
Easy-to-use gain and bass EQ controls
Built-in protection circuitry for short circuits and thermal overload
